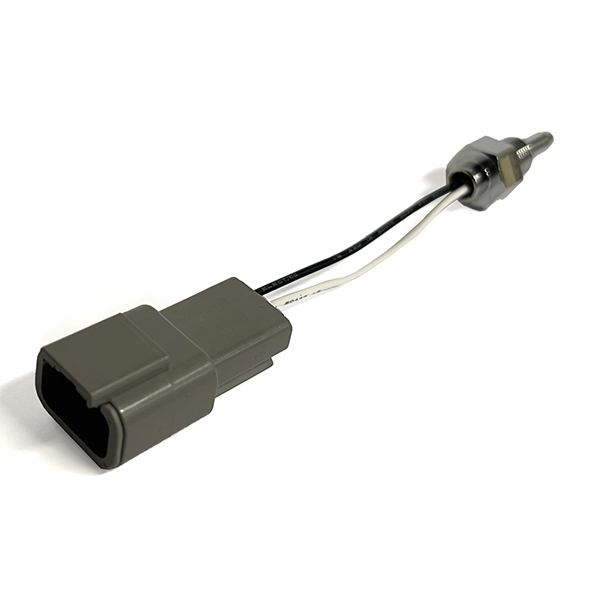

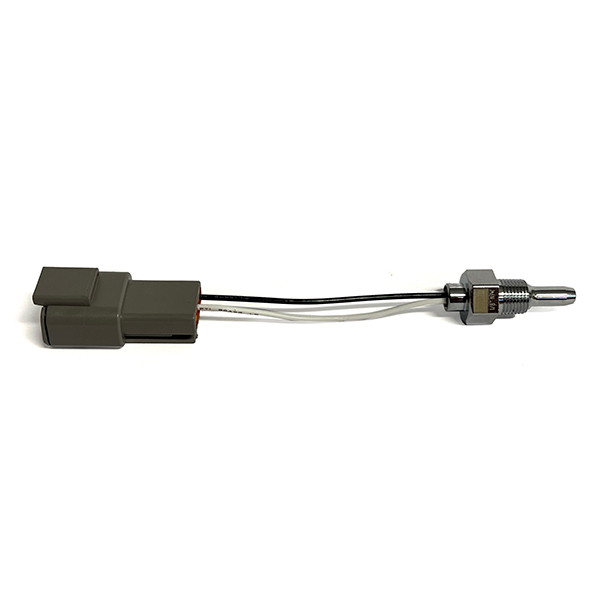

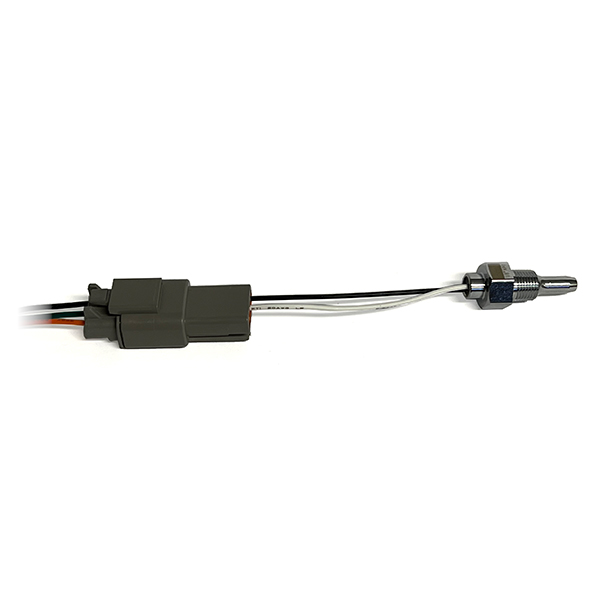

NTC01 - NTC temperature sensor with DTM04-3P & integrated resistor and mating plug
69,00 €*
Versandfertig in 1 Tag, Lieferzeit 5-7 days
Thermocouple Converter (TCC01) with Male Connector
The TCC01 is a so-called "Thermocouple Amplifier" a device that amplifies and converts the signal from a Type K sensor our simple Thermocouple Converter.
With our TCC01, you can easily connect your exhaust temperature sensor, for example:
Insert the Type K probe on one side into the converter and on the other side, use the DTM plug for power supply with 5V, ground, and the signal for your control unit or data display.
Features of the TCC01
- Reliable Thermocouple Amplifier
- Cold-Junction Compensated Type K Input
- DTM06-3S Plug
- Standard Mini Thermocouple Connector
- Mounting Tab for Attachment with M6 Screw or Cable Tie
- Linear Temperature Curve from 0-1000°C
Package Contents
- TCC01 in Enclosure
- DTM Plug with Locking Mechanism
- 3 Pins for Self-Crimping
- 3 Pre-Crimped Connection Cables
Support for a Variety of Devices
Any device with an analog input for 0-5V signals can be used as a receiver, such as:
- AEM
- Ecumaster
- Emtron
- DTAfast
- Haltech
- LinkECU
- KMS van Kronenburg
- MaxxECU
- MBE
- Megasquirt
- Motec
- Syvecs
- VEMS
But the Type K converter can be used not only for exhaust temperatures but also for liquids (1mm thermocouples) and gases (0.5mm thermocouples).
Technical Specifications
- Only 180uA Power Consumption
- Very Fine Resolution at 4mV per °C
- Calibration: 0V = 0°C (32°F) and 5V = 1000° (1832°F)
- Accuracy: Maximum 2% Deviation
- Internal Cold-Junction Compensation
- For Measuring Gases, Liquids, and Other Media
- Supports Various Types of Type K Elements (Including 0.5, 1, 3, and 5mm Diameter)
Installation
Installing the Thermocouple Converter TCC01 (Thermocouple Amplifier) is simple. It should be placed in a dry and not too hot location, such as behind the firewall.
You can use the integrated tab for attachment. Due to the special design, it is possible to attach multiple TCC01 modules side by side. For maximum fixation, you can attach the included tab to the TCC01 module with super glue.
Our displays are pre-configured for connecting the TCC01. Connect the signal to AIN2 for this purpose.
Multiple TCC01 Modules
However, often two or more modules are needed, for example, in twin-scroll turbocharger manifolds. Here, you can simply stack the modules together.
Of course, when using multiple Type K probes, you can also opt for our TCCXX series and write the measurement values directly to the Can Bus. These are available as TCC04, TCC06, TCC08, and TCC10.
