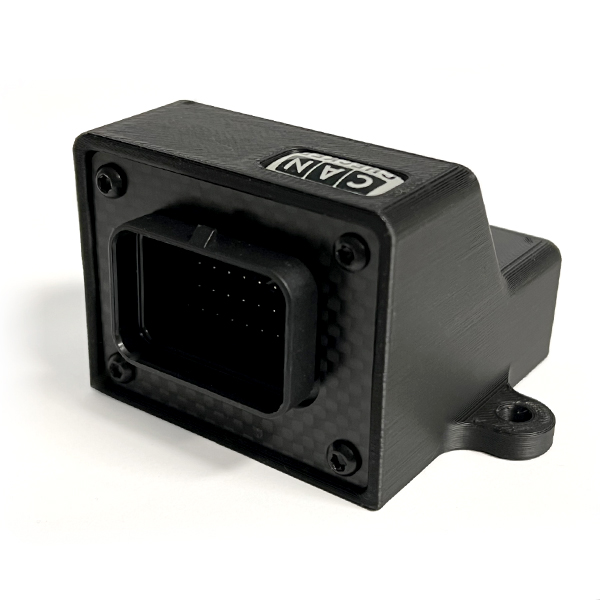

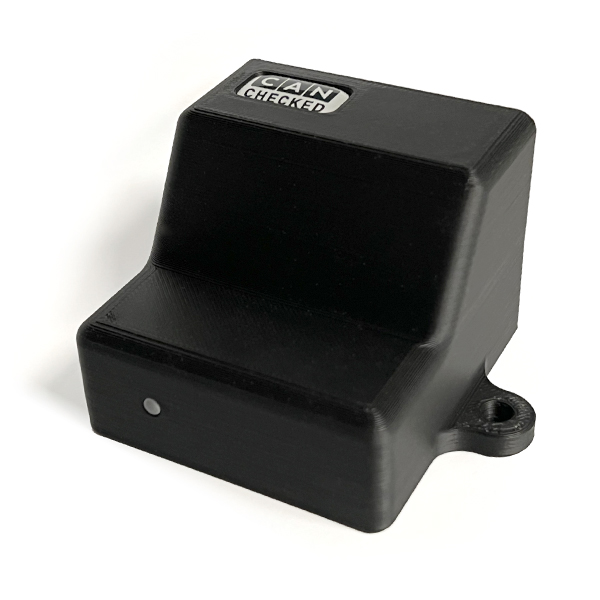

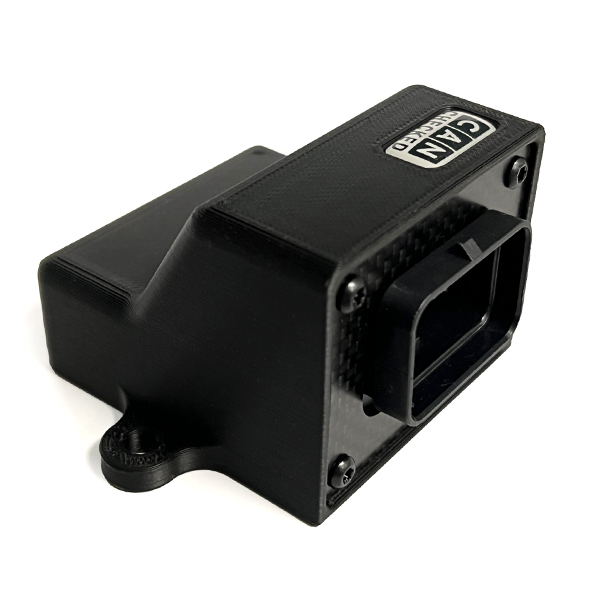

MCE18 - Can Bus Extension
229,00 €*
Versandfertig in 1 Tag, Lieferzeit 5-7 days
CANchecked MCE18 - Multufunction Can Bus Extension
MCE18, the ultimate "Multifunction Can Bus Extension"! But what exactly is the MCE18, and why do you need it?
The MCE18, which stands for "Multifunction Can Bus Extension," is a versatile module that can be indispensable in various applications. Our range of displays, including MFD15, MFD28, MFD32, and MFD32S, comes standard with four analog inputs. This is sufficient for most cases, but there are situations where you need more inputs to meet your requirements.
In such cases, the MCE18 offers the perfect solution. You can easily connect your sensors to this module and transmit the data to your desired device via the flexible Can Bus protocol, whether it's one of our displays or another compatible device.
But it's not just displays that benefit from our MCE18. Programmable control units also often have a limited number of inputs. With our module, you can easily expand these inputs and send the data directly to the control unit to meet your control requirements.
Here are the key features of the MCE18:
- 9 analog inputs in the range of 0-5 volts to capture a wide range of sensor information.
- 8 digital inputs to monitor the status of switches, buttons, or other on/off devices.
- 3 digital outputs (new in Version 2!), capable of carrying up to 500 mA and switching to ground (LOW SIDE).
Our products have been carefully tested and are compatible with various devices, including CANchecked MFD28, MFD32, MFD32S, MaxxECU, Ecumaster, LinkECU, Haltech (emulating an IO Extender A+B or only B), and soon they will also be compatible with Syvecs and Motec.
In the package of the MCE18, you will find:
- The MCE18 module with housing
- A 34-pin Superseal connector (TE 4-1437290-0) for a reliable connection.
- Superseal 1.0 20AWG pins (TE 3-1447221-4) for stable wiring.
- 3 jumpers to customize the configuration to your needs (Can Bus termination, 2x 1K pull-up for NTC sensors).
A particularly remarkable feature of the MCE18 is the three digital outputs that switch to ground (LOW SIDE) and can carry up to 500 mA.
So, if you're looking for a flexible and reliable way to expand your analog and digital inputs and communicate via Can Bus, the MCE18 is the perfect solution. Order today and optimize your electronic systems!
